เกรดนาวิกโยธิน 5086 H116 Aluminum Plate

การแนะนำ

เกรดนาวิกโยธิน 5086 H116 aluminum plate has become a staple in modern shipbuilding, โครงสร้างนอกชายฝั่ง, and marine equipment thanks to its exceptional combination of strength, ความสามารถในการขึ้นรูป, และความต้านทานการกัดกร่อน.

When people refer to Marine Grade 5086 H116 aluminum plate, they are talking about a specific alloy and temper within the 5xxx family (อัล-มก).

The H116 temper indicates a particular degree of strain hardening that balances strength with ductility, making the material suitable for hull plates, ชั้น, and other critical components exposed to saltwater environments.

บทความนี้มีเนื้อหาครอบคลุม, data-supported guide to Marine Grade 5086 H116 aluminum plate. It covers alloy composition, คุณสมบัติทางกล, ความต้านทานการกัดกร่อน, welding and fabrication considerations, และการประยุกต์ใช้งานจริง.

นอกจากนี้ยังแนะนำ Huawei Aluminium, a prominent supplier known for quality control, การรับรอง, and reliable supply chains in the marine aluminum market.

The content is designed to help engineers, procurement specialists, shipyards, and aftermarket manufacturers make informed decisions, เพิ่มประสิทธิภาพการทำงาน, and minimize risk when selecting 5086-H116 plate for marine projects.

What is Marine Grade 5086 H116 aluminum plate?

Alloy and temper overview

เกรดนาวิกโยธิน 5086 H116 aluminum plate belongs to the 5xxx series of aluminum alloys, which are aluminum-magnesium alloys known for their excellent corrosion resistance in marine environments.

ดิ 5086 โลหะผสม typically contains approximately 4–5% magnesium, with the remainder aluminum and small trace elements.

This composition gives 5086 good strength while maintaining excellent resistance to seawater corrosion, particularly when compared with many other alloys.

The H116 temper is a specific strain-hardened condition. In aluminum temper designations, the “H” family indicates work hardening to a stable state.

H116 means the material has been strain-hardened (and possibly lightly worked or partially annealed depending on the precise processing route) to a defined strength level, without full stabilization by annealing.

The result is a plate that retains higher strength than fully annealed grades (such as F or O tempers) while still maintaining reasonable ductility and good formability for plate fabrication, ตัด, ดัด, and joining.

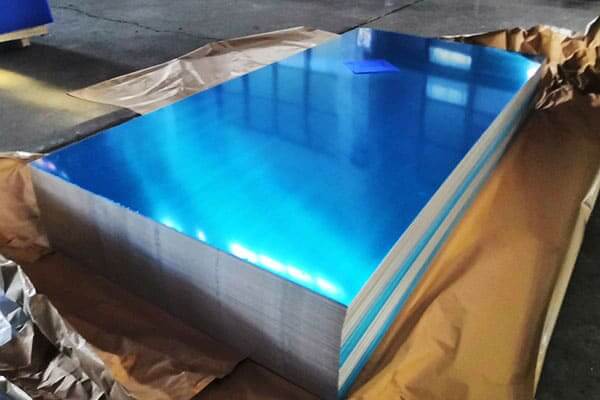

เกรดนาวิกโยธิน 5086 H116 Aluminum Plate

How H116 differs from other tempers

• H116 ปะทะ. H32 or H34: H116 is generally a lower hardness and higher ductility condition than H32, H34, or fully strain-hardened tempers that are more common in non-marine 5xxx plates. H32/H34 is more strongly strain-hardened and tends to have higher yield strength but less elongation and formability.
• H116 ปะทะ. H116 in other alloys: The exact response of temper designations can vary slightly from alloy to alloy due to solid solution strength, precipitate formation, and work-hardening behavior. อย่างไรก็ตาม, the core concept remains: H116 provides a practical balance of strength, ความสามารถทำงานได้, and corrosion resistance for marine applications.

Typical compositions

The precise chemical composition for 5086-H116 depends on the producer and production lot, but typical ranges for the key elements are:

• แมกนีเซียม (มก): approximately 4.0–4.9%
• ซิลิคอน (ซี): trace amounts, usually well under 0.8%
• แมงกานีส (ล้าน): trace to moderate levels (often under 0.8%)
• เหล็ก (เฟ): usually under 0.7–1.0% in practice
• องค์ประกอบอื่นๆ (โครเมียม, สังกะสี, ทองแดง): kept to minimums, usually in trace amounts
• อลูมิเนียม (อัล): สมดุล

โน้ต: The exact composition should be confirmed via the producer’s certified mill test report (เอ็มทีอาร์) or alloy data sheet. The ranges above reflect common practice for 5086 alloys and are intended to provide context for performance expectations rather than a guaranteed specification.

Mechanical properties and corrosion resistance

คุณสมบัติทางกล

Material performance varies by supplier, กำลังประมวลผล, และความหนา. The following ranges summarize common expectations for 5086-H116 plate in the thickness ranges typically used for marine hull plates (roughly 3–20 mm, with thicker plates also available):

• ความแข็งแรงของผลผลิต (วายเอส): approximately 95–145 MPa (14–21 ksi)
• ความต้านทานแรงดึงสูงสุด (มหาวิทยาลัยสงขลานครินทร์): approximately 230–290 MPa (33–42 ksi)
• การยืดตัวเมื่อขาด (A50 or A80 depending on thickness and standard): around 10–15% in thinner gauges, decreasing slightly as thickness increases
• ความแข็ง (Vickers or Brinell): ปานกลาง, reflecting the balance between strength and formability

Practical takeaway: 5086-H116 offers sufficient yield strength for structural plates while maintaining ductility for forming and repair.

In thin sheets or heavily worked sections, the apparent strength can vary, but the alloy’s ability to absorb energy without brittle failure remains advantageous in marine environments.

Corrosion resistance in marine environments

• Saltwater resistance: 5086 is exceptionally corrosion resistant in saltwater, due to the protective aluminum oxide film and the beneficial effect of magnesium on passivation. This makes 5086-H116 an ideal choice for hull plating, ชั้น, โครงสร้างส่วนบน, and other exposed surfaces.
• Galvanic compatibility: When used with appropriate coatings and compatible fasteners (เช่น., aluminum or stainless steel, with isolators where required), 5086-H116 plates contribute to longer service life and easier maintenance in harsh marine atmospheres.
• การกัดกร่อนจากความเครียดแตกร้าว: The high Mg content and stable temper reduce susceptibility to stress corrosion cracking in many seawater service conditions, though design and environment still matter. Avoid aggressive chloride concentrations and consider protective coatings or cathodic protection where appropriate.

Weldability and formability

• ความสามารถในการเชื่อม: Excellent weldability with commonly used filler metals such as ER5356 and ER5183. Welding 5086-H116 typically yields good joint strength, with corrosion resistance preserved at the weld zone when proper techniques are used.
• แบบฟอร์ม: Good formability for hull plating, ชั้น, and other panels. The H116 temper maintains ductility that enables bending, ม้วนงอ, and hydroforming in many cases, though thicker sections require standard forming precautions to minimize cracking or wrinkling.
• Post-weld heat treatment: Unlike some heat-treatable alloys, 5xxx series generally do not require post-weld heat treatment. อย่างไรก็ตาม, some fabricators perform post-weld heat treatment on thicker plates to relieve residual stresses, depending on specifications.

Mechanical properties overview

หมายเหตุ:
– The values are indicative ranges meant to guide initial design decisions. For precise design, use the supplier’s mill test reports (เอ็มทีอาร์) and property data for the exact batch.

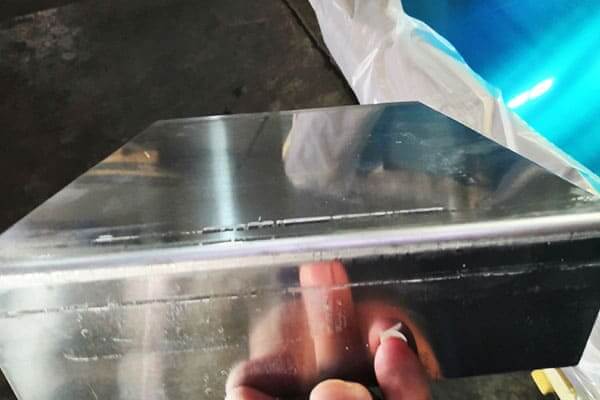

การทดสอบการดัดงอของ 5086 H116 Aluminum Plate

Fabrication and joining considerations

Cutting and machining best practices

• ตัด: For marine-grade 5086-H116, พลาสมา, laser, or waterjet cutting typically yields clean edges with minimal heat-affected zone (อันตราย). Thin to mid-thickness plates cut well with these methods.
• Drilling: Use sharp high-speed steel or carbide drill bits; apply coolant if noise or heat is observed, and countersink as needed with appropriate tools to avoid edge cracking.
• การลบคม: Clean burrs to minimize corrosion initiation at edges.

Welding procedures and filler metals

• Common weld methods: Gas metal arc welding (GMAW/มิก) ใช้กันอย่างแพร่หลาย. Gas tungsten arc welding (จีทาว์/TIG) is used for precision joints or where aesthetics matter.
• Filler metals: ER5356 is a common choice for 5086; ER5183 is another option depending on joint design and corrosion considerations.
• Weld design considerations: Ensure proper joint geometry to avoid stress concentrations. Preheat is typically not required for 5086-H116, and post-weld heat treatment is usually unnecessary, but consult welding procedure specs (WPS) for thickness-specific guidance.

Forming and bending

• Bending radius: Plan on generous bend radii to avoid cracking in the heat-affected zone, especially for thicker plates.
• Springback: Expect some springback in cold-worked states; verify with pilot bends and adjust tooling accordingly.
• Surface support: Use soft, uniform backing materials to reduce tearing and wrinkling in thin-laminate panels.

Surface finishing and coating compatibility

• เสร็จ สิ้น: Anodizing is not typical for 5xxx series to maintain corrosion resistance; instead, mechanical polishing and protective paint systems are common.
• การเคลือบ: Marine-grade coatings with proper surface preparation work well; ensure compatibility with aluminum to prevent galvanic corrosion when joined to other metals.

7. Applications of Marine Grade 5086 H116 Aluminum Plate

Ship Hull Construction

One of the most important applications of 5086 H116 aluminum plate is ship hull construction.

Thanks to its excellent resistance to seawater corrosion and favorable strength-to-weight ratio, the alloy is widely used for hull plating, side shells, bottom structures, and transoms.

Compared with traditional steel hulls, aluminum hulls offer significant weight savings, which can improve vessel speed, fuel efficiency, and payload capacity while reducing operating costs.

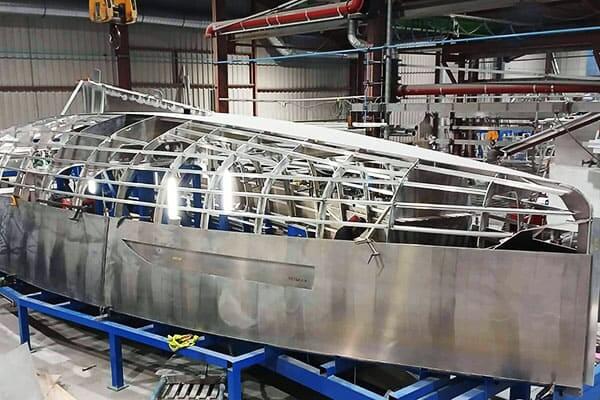

5086 H116 Aluminum Plate for Ship Hull

High-Speed Ferries and Passenger Vessels

Modern ferry operators increasingly select เกรดมารีน 5086 H116 aluminum plate for high-speed passenger vessels.

The lightweight characteristics of the alloy allow ferries to achieve higher cruising speeds and lower fuel consumption.

นอกจากนี้, its superior corrosion resistance helps minimize maintenance requirements, making it an economical choice for vessels that operate continuously in coastal and offshore environments.

Patrol Boats and Naval Craft

Military and law enforcement agencies frequently utilize 5086 H116 aluminum plate in patrol boats, coastal defense vessels, landing craft, and other naval applications.

The alloy provides an ideal balance of structural strength, ความทนทาน, and weight reduction.

นอกจากนี้, its excellent weldability supports the fabrication of complex hull structures while maintaining reliable performance under demanding operating conditions.

Commercial Fishing Vessels

Commercial fishing boats operate in some of the harshest marine environments, where constant exposure to seawater, ความชื้น, and mechanical stress can accelerate material degradation.

สำหรับเหตุผลนี้, many fishing vessel builders rely on 5086 H116 aluminum plate for hulls, ชั้น, และส่วนประกอบโครงสร้าง.

The alloy’s corrosion resistance helps extend vessel service life while reducing repair and maintenance costs.

Offshore Oil and Gas Platforms

Offshore platforms require materials capable of withstanding continuous exposure to salt spray, ความชื้น, and corrosive marine atmospheres.

5086 H116 aluminum plate is commonly used for platform decks, ทางเดิน, access structures, บันได, and equipment supports.

Its durability and low maintenance requirements contribute to improved operational efficiency and reduced lifecycle costs for offshore facilities.

Offshore Renewable Energy Projects

The rapid development of offshore wind farms and renewable energy infrastructure has increased demand for corrosion-resistant structural materials.

5086 H116 aluminum plate is often used in service platforms, maintenance access systems, equipment enclosures, and support structures.

Its lightweight nature simplifies transportation and installation while ensuring long-term reliability in marine environments.

Decks and Superstructures

Many commercial and naval vessels utilize 5086 H116 aluminum plate for deck structures and superstructures.

By reducing weight above the vessel’s center of gravity, aluminum construction can improve stability and vessel handling characteristics.

ขณะเดียวกัน, the alloy provides sufficient strength to withstand operational loads and harsh weather conditions.

Bulkheads and Internal Marine Structures

Beyond external applications, 5086 H116 aluminum plate is also widely used for bulkheads, พาร์ติชัน, reinforcement panels, and internal structural components.

The material offers excellent resistance to corrosion in humid marine environments and allows designers to reduce overall vessel weight without compromising structural integrity.

Marine Storage Tanks

The excellent weldability and corrosion resistance of 5086 H116 make it suitable for manufacturing fuel tanks, freshwater tanks, ballast tanks, and other onboard storage systems.

Properly fabricated aluminum tanks provide long-term durability and help minimize maintenance requirements throughout the vessel’s operational life.

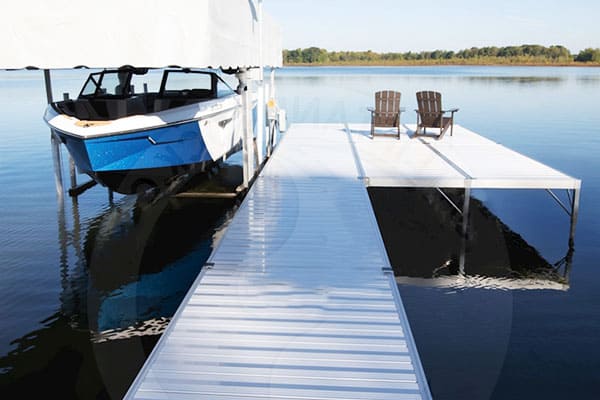

Platforms Application of 5086 H116 Aluminum Plate

Processing and supply chain considerations

Quality standards and testing

• รายงานการทดสอบโรงสี (MTRS): Reputable suppliers provide complete MTRs detailing chemical composition, คุณสมบัติทางกล, and test results for each plate lot.
• การรับรอง: Look for ISO 9001 quality management certification, and supplier quality system documentation demonstrating traceability and process control.
• Non-destructive testing (NDT): Depending on service class and thickness, NDT methods such as dye penetrant, magnetic particle, or ultrasonic testing may be used on critical joints or thick sections.

พื้นที่จัดเก็บ, การจัดการ, และป้องกันการกัดกร่อน

• พื้นที่จัดเก็บ: Store plates flat or on dunnage to prevent bending and edge damage; cover to protect from moisture and salt spray.
• การจัดการ: Use non-marring slings and protective edge guards to avoid dents and edge damage.
• ป้องกันการกัดกร่อน: For critical assemblies, ensure protective coatings and sealants are applied correctly to prevent galvanic corrosion with fasteners and adjacent materials.

Supply chain and logistics

• Lead times: Marine plate orders can have long lead times; ensure a reliable supplier with backup stock or predictable fulfillment.
• Logistics: Consider packaging, ขนส่ง, and on-site delivery schedules that align with shipyard construction sequences.
• After-sales support: The ability to provide precise MTRs, ความคลาดเคลื่อนความหนา, and supplementary data on request adds value to the procurement process.

จุดเด่นของซัพพลายเออร์: หัวเว่ยอลูมิเนียม

ภาพรวมของบริษัท

หัวเว่ยอลูมิเนียม is a prominent producer and supplier of aluminum products, including marine-grade alloys like 5086-H116.

The company emphasizes a robust quality management system, rigorous traceability, and a broad portfolio of alloys that meet or exceed industry standards.

Huawei Aluminum’s capabilities cover ingot and plate production, การรักษาความร้อน, การตกแต่งพื้นผิว, and value-added processing such as cutting, การขึ้นรูป, and pre-fabrication.

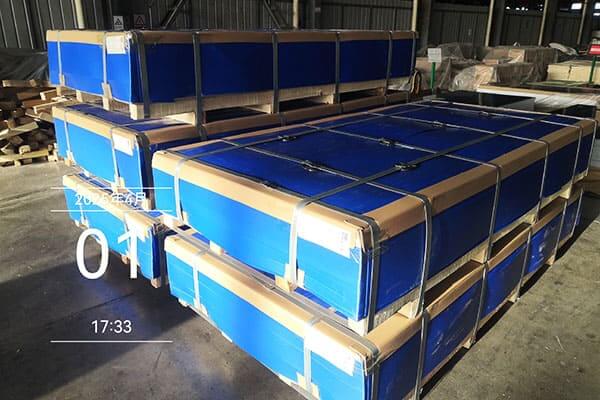

Huawei Packaged Marine Grade 5086 H116 Aluminum Plate

Capabilities and certifications

• Material range: A wide selection of 5xxx-series alloys (รวมทั้ง 5083 และ 5086) in plate and sheet formats, with various tempers including H116.
• การรับรอง: กอ.รมน 9001, quality management protocols, and compliance with relevant marine industry standards and testing procedures.
• Processing options: การตัด, ตัด, stacking, and packaging designed for marine applications, along with traceability documentation and dedicated account management.

Quality management and supply chain

• การตรวจสอบย้อนกลับได้: Huawei Aluminum emphasizes full batch traceability from raw material to finished plate, enabling precise MTRs and material certification.
• ความสม่ำเสมอ: A focus on process controls reduces variability across lots and thicknesses, which is critical for hull panels and structural components.
• การสนับสนุนลูกค้า: The company offers technical support, application guidance, and engineering collaboration to optimize plate selection and fabrication processes.

Why Huawei Aluminum for Marine Grade 5086 H116

• ความน่าเชื่อถือ: Proven track record supplying marine-grade aluminum to shipyards, offshore operators, and equipment manufacturers.
• การปรับแต่ง: Ability to tailor plate dimensions, ความคลาดเคลื่อน, and surface finishing to project requirements, enabling faster fabrication and reduced on-site adjustments.
• เอกสาร: Ready access to MTRs, compliance data, and technical datasheets supports quality assurance and regulatory audits.

เกรดนาวิกโยธิน 5086 H116 Aluminum Plate VS Other Marine Alloys

FAQs About Marine Grade 5086 H116 Aluminum Plate

ถาม: What exactly does H116 mean for marine-grade 5086 จาน?
อา: H116 indicates a strain-hardened temper with a specific level of work hardening that balances strength and ductility. It is designed to maintain good formability for forming processes while delivering adequate yield strength for structural use in marine environments.

ถาม: Can I weld 5086-H116 to other materials?
อา: ใช่, but compatibility matters. Aluminum-to-aluminum welds with ER5356 or ER5183 filler metals are common. If joining to steel, เหล็กกล้าไร้สนิม, or dissimilar metals, use appropriate bonding strategies and isolation to avoid galvanic corrosion. Consult a welding engineer for joint design.

ถาม: Is post-weld heat treatment required for 5086-H116?
อา: Typically no. The 5xxx-series alloys are not heat-treated after welding. Some projects with thick sections may opt for stress-relief methods or other treatments per project specifications, but this is not standard practice for most marine plates.

ถาม: How does 5086-H116 compare with 5083-H116 for corrosion resistance?
อา: Both offer excellent corrosion resistance in seawater. 5086 tends to provide better general corrosion resistance and a better balance of formability with corrosion resistance in hull plating compared with some 5083 อารมณ์. อย่างไรก็ตาม, 5083 can offer higher strength in certain tempers, so the choice depends on design requirements.

ถาม: What factors should I consider when ordering Marine Grade 5086 H116 plate?
อา: Consider thickness, plate width and length, การตกแต่งพื้นผิว, ความคลาดเคลื่อน, required MTRs, certification needs, welding and joining design, and the project’s corrosion protection plan. Align with the supplier on lead times and packaging to ensure smooth fabrication.

ถาม: Why would I choose Huawei Aluminum for Marine Grade 5086 H116 plate?
อา: Huawei Aluminum offers a broad product portfolio, consistent quality control, transparent MTRs, and a global supply capability. The company’s focus on marine-grade alloys, process reliability, and customer-centric service makes it a credible partner for hull plates and related components.

บทสรุป

เกรดนาวิกโยธิน 5086 H116 aluminum plate represents a pragmatic choice for marine construction, balancing corrosion resistance, ความสามารถในการเชื่อม, and mechanical performance.

Its magnesium-rich Al-Mg composition provides resilience in saltwater environments, while the H116 temper offers workable strength for hull plates, ชั้น, and structural panels.

For shipyards and marine equipment manufacturers, selecting 5086-H116 can translate into longer service life, reduced maintenance costs, and reliable fabrication workflows.

เมื่อเลือกซัพพลายเออร์, Huawei Aluminum stands out as a credible option with a focus on quality assurance, การตรวจสอบย้อนกลับ, และการสนับสนุนด้านเทคนิค.

The combination of robust product specifications, rigorous testing, and responsive service helps ensure that projects proceed smoothly from design to deployment and beyond.

If you are evaluating marine aluminum plates for a new build or retrofit, use the information above to guide your decision.

Build a requirements checklist that includes alloy grade, อารมณ์, ความหนา, ความคลาดเคลื่อน, MTR documentation, welding procedures, coatings compatibility, และการสนับสนุนหลังการขาย.

With careful planning and the right partner, เกรดนาวิกโยธิน 5086 H116 aluminum plate can deliver dependable performance in the harsh realities of the sea.
