5005 Anodized Aluminum Sheet Plate

1. Introduction

5005 Anodized Aluminum Sheet Plate combines the inherent properties of 5005 aluminum alloy with the enhanced surface characteristics provided by anodizing.

It is particularly suitable for applications where surface appearance, corrosion resistance, formability, and long-term decorative performance are important.

The anodizing process further changes the surface of the aluminum rather than simply adding a conventional paint coating.

Under controlled electrochemical conditions, the aluminum surface develops an oxide layer that can improve surface durability, corrosion resistance, wear resistance, and decorative appearance.

For this reason, 5005 anodized aluminum sheet is frequently considered for architectural cladding, interior panels, signage, furniture, equipment housings, decorative components, and other visible aluminum products.

Henan Huawei Aluminum Co., Ltd. supplies aluminum sheet and plate for a wide range of industrial and architectural applications.

For 5005 anodized aluminum projects, Huawei can coordinate alloy, temper, dimensions, surface requirements, and downstream processing requirements according to the customer’s application and purchasing specification.

2. What Is Aluminum Alloy 5005?

2.1 Overview of 5005 Aluminum Alloy

5005 aluminum is a wrought aluminum-magnesium alloy within the 5xxx series.

Its relatively moderate magnesium content provides a combination of strength, corrosion resistance, and formability without making the alloy excessively difficult to fabricate.

Unlike 2xxx, 6xxx, and 7xxx series heat-treatable alloys, 5005 does not rely on precipitation hardening to achieve its normal strength levels.

Instead, manufacturers control its mechanical properties mainly through cold working and temper processing.

2.2 Chemical Composition of 5005 Aluminum

The magnesium content plays an important role in the behavior of 5005 aluminum. A representative composition is shown below:

The exact chemistry should always be checked against the material standard specified for the order.

Published 5005 H34 material data provide the above composition ranges as representative requirements.

The relatively controlled alloy chemistry is particularly important for anodizing applications.

Even when two materials carry the same 5005 designation, differences in manufacturing history and surface condition can influence the visual result after anodizing.

2.3 5005 as a Non-Heat-Treatable Alloy

One important characteristic of 5005 is that it belongs to the non-heat-treatable aluminum alloy group.

Manufacturers generally use cold working to increase strength. This produces different tempers with different combinations of:

• Tensile strength
• Yield strength
• Elongation
• Formability
• Bendability

For example, 5005 O provides a softer condition with higher formability, while 5005 H32 or H34 offers greater strength while retaining useful fabrication characteristics.

Therefore, the alloy number alone does not fully define the material. A purchase specification should normally include both:

Alloy + Temper

2.4 Typical Product Forms

5005 can be supplied in several forms depending on production capability and project requirements, including:

• Aluminum sheet
• Aluminum plate
• Cut-to-size sheet
• Coil-fed material
• Strips
• Fabricated panels

For anodizing applications, sheet dimensions and surface condition become particularly important because larger visible surfaces make differences in appearance easier to detect.

ASTM B209/B209M covers aluminum and aluminum-alloy flat sheet, coiled sheet, and plate and establishes requirements for applicable alloys and tempers.

3. Why Is 5005 Aluminum Suitable for Anodizing?

3.1 Anodizing Is More Than a Surface Coating

Anodizing differs fundamentally from painting or conventional organic coating.

During anodizing, the aluminum component becomes the anode in an electrochemical process.

The process converts the aluminum surface into a controlled aluminum oxide layer.

This oxide layer becomes part of the aluminum surface rather than forming a separate paint film on top of it.

Depending on the process, the anodized surface can provide:

• Improved corrosion resistance
• Increased surface hardness
• Better resistance to normal surface wear
• A stable metallic appearance
• Opportunities for decorative coloring

For visible architectural products, this combination can be particularly valuable.

3.2 5005 Provides a Good Balance for Decorative Anodizing

One of the main reasons manufacturers select 5005 for anodized sheet is its balance between moderate strength, fabrication performance, corrosion resistance, and decorative finishing capability.

Technical data for 5005 specifically identify the alloy as highly suitable for decorative anodizing.

The alloy’s magnesium content also differentiates it from very high-purity aluminum grades.

This allows 5005 to provide useful mechanical performance while retaining an attractive response to anodizing.

3.3 Attractive Metallic Appearance

Unlike many painted metal surfaces, anodized aluminum retains a recognizable metallic appearance.

Depending on the surface preparation and anodizing process, 5005 can be supplied with finishes such as:

• Natural silver
• Clear anodized
• Brushed anodized
• Bronze
• Champagne
• Dark tones
• Black

4. Anodizing Process for 5005 Aluminum Sheet Plate

Anodizing converts the surface of 5005 aluminum into a controlled aluminum oxide layer through an electrochemical process.

This treatment improves surface durability, corrosion resistance, and decorative appearance.

For 5005 aluminum sheet, consistent surface preparation and process control are particularly important because anodizing can make differences in the base-metal surface more visible.

4.1 Surface Preparation

The process begins with cleaning to remove rolling oils, grease, dirt, and other contaminants.

Depending on the required finish, controlled etching may follow to create a more uniform surface texture.

Desmutting removes residual materials before anodizing. Proper pretreatment helps achieve a more consistent anodized surface.

4.2 Electrochemical Anodizing

The prepared 5005 aluminum sheet is placed in an electrolytic bath and connected as the anode.

A controlled electrical current forms an aluminum oxide layer on the surface.

Important process parameters include:

• Electrolyte chemistry
• Bath temperature
• Current density
• Treatment time
• Anodic coating thickness

Stable process conditions help maintain consistent surface quality and appearance.

4.3 Coloring and Surface Finishing

5005 aluminum can receive natural or colored anodized finishes according to the application. Common options include:

• Natural silver
• Champagne
• Bronze
• Dark bronze
• Black

Brushed and other surface textures can also be prepared before anodizing to achieve specific decorative effects.

For appearance-critical projects, customers should define the required color, gloss, surface texture, and color tolerance in advance.

4.4 Sealing

After anodizing or coloring, the oxide layer is sealed to improve its resistance to environmental exposure and staining.

The sealing process should match the anodizing system and the intended service environment.

4.5 Final Quality Inspection

The finished 5005 anodized aluminum sheet plate should undergo dimensional and surface inspections. Key inspection points include:

• Thickness and dimensional tolerance
• Flatness
• Scratches and streaks
• Color and gloss consistency
• Anodic coating thickness
• Surface uniformity
• Sealing quality

For architectural and decorative applications, base-material quality is just as important as anodizing process control.

Henan Huawei Aluminum Co., Ltd. can coordinate alloy, temper, dimensions, surface requirements, and anodizing specifications according to customer and project requirements.

5. 5005 Anodized Aluminum Sheet Plate Specifications

5005 anodized aluminum sheet plate can be supplied in different alloy tempers, thicknesses, dimensions, surface finishes, and anodizing conditions.

For architectural and decorative applications, buyers should specify not only the basic alloy and temper but also the surface quality, anodizing finish, coating thickness, color, dimensional tolerance, and inspection requirements.

5.1 Core Specifications

6. Physical Properties of 5005 Anodized Aluminum Sheet Plate

The physical properties of 5005 aluminum remain fundamentally those of the aluminum alloy; anodizing primarily modifies the surface rather than significantly changing the bulk properties of the sheet.

Representative physical properties are shown below. Values can vary slightly with alloy chemistry, product condition, temperature, and applicable standard.

Published 5005-H34 data report a density of approximately 2.70 g/cm³, elastic modulus of 69.5 GPa, thermal conductivity of 201 W/m·K, and thermal expansion of 23.5 × 10⁻⁶/K.

7. Mechanical Properties With Different Tempers

5005 aluminum is a non-heat-treatable aluminum alloy. Its mechanical strength mainly depends on the temper condition and the amount of cold working.

As the temper increases from O to H18/H38, tensile strength and yield strength generally increase, while elongation and formability decrease.

7.1 Typical Mechanical Properties of 5005 Aluminum

Typical representative values. Actual properties vary with thickness, product form, manufacturing condition, and applicable standard.

8. Advantages of 5005 Anodized Aluminum Sheet Plate

5005 anodized aluminum sheet combines the properties of a 5xxx-series aluminum alloy with the functional and decorative benefits of anodizing.

This combination makes it particularly useful for applications where both material performance and surface appearance matter.

8.1 Excellent Anodizing Response

5005 is well suited to decorative anodizing. Its surface can achieve a clean metallic appearance in natural or colored finishes when the base material and anodizing process are properly controlled.

8.2 Good Corrosion Resistance

5005 provides good resistance to normal atmospheric corrosion, while the anodized oxide layer provides additional surface protection.

This makes the material suitable for many indoor and outdoor architectural applications.

8.3 Attractive Decorative Appearance

Anodizing preserves the natural metallic character of aluminum while providing options such as:

• Silver
• Champagne
• Bronze
• Black
• Brushed finishes

This makes 5005 suitable for visible architectural and decorative surfaces.

8.4 Good Formability

5005 can be supplied in different tempers, allowing manufacturers to balance strength and forming performance.

Softer tempers are suitable for more demanding forming operations, while harder tempers provide greater rigidity.

8.5 Lightweight

The density of approximately 2.70 g/cm³ allows 5005 sheet to reduce structural weight compared with many conventional metal materials.

8.6 Good Weldability

5005 has good welding characteristics and can be used in fabricated assemblies where welding is required.

However, welding after anodizing can damage the anodized layer around the weld area, so the fabrication sequence should be planned in advance.

8.7 Good Surface Durability

The anodized oxide layer provides a harder and more durable surface than untreated aluminum.

This can help the finished product withstand normal handling, environmental exposure, and surface wear.

9. Applications of 5005 Anodized Aluminum Sheet Plate

5005 anodized aluminum sheet combines the lightweight properties of aluminum with a durable and decorative anodized surface.

Its good corrosion resistance, formability, and attractive appearance make it suitable for architectural, decorative, industrial, and commercial applications.

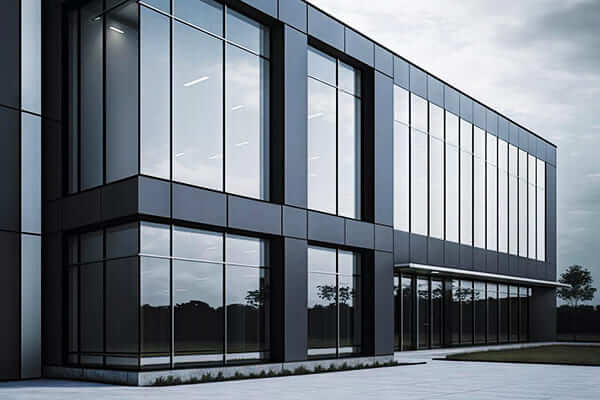

9.1 Architectural Facades and Wall Cladding

5005 anodized aluminum sheet is widely used for architectural wall panels, facade cladding, column covers, and decorative exterior elements.

The anodized surface provides a clean metallic appearance while improving resistance to atmospheric exposure.

Common finishes include natural silver, champagne, bronze, dark bronze, and black.

9.2 Interior Wall Panels and Ceiling Systems

5005 anodized aluminum sheet is suitable for:

• Interior wall panels
• Ceiling panels
• Decorative partitions
• Elevator interior panels
• Column covers
• Decorative trims
• Interior architectural features

Its relatively good formability allows manufacturers to cut, bend, punch, and fabricate the sheet according to project requirements.

9.3 Signage and Decorative Panels

5005 anodized aluminum sheet works well for signs, nameplates, display panels, and decorative metal panels.

Its smooth anodized surface provides an attractive background for engraving, printing, lettering, and other decorative processes.

9.4 Furniture and Interior Decoration

Typical applications include:

• Furniture panels
• Cabinet panels
• Decorative frames
• Shelves
• Interior trims
• Decorative covers

The combination of appearance, lightweight construction, and fabrication flexibility makes 5005 suitable for modern interior products.

9.5 HVAC and Equipment Panels

5005 anodized aluminum sheet can also be used for HVAC panels, equipment housings, electrical cabinets, and other industrial components where lightweight construction and surface protection are important.

9.6 Transportation and Commercial Interiors

5005 anodized aluminum sheet can serve selected transportation and commercial interior applications where manufacturers require a combination of low weight, corrosion resistance, surface appearance, and fabrication performance.

The exact temper and thickness should match the forming process and service requirements.

10. Huawei Quality Control for 5005 Anodized Aluminum Sheet Plate

Consistent quality is particularly important for anodized aluminum because the anodizing process can make differences in the underlying aluminum surface more visible.

Huawei Aluminum controls key quality factors from alloy selection and rolling through surface treatment, inspection, and final packaging.

10.1 Alloy and Chemical Composition Control

We verify the chemical composition of 5005 aluminum against the agreed material standard and purchase specification.

Key elements include:

• Aluminum (Al)
• Magnesium (Mg)
• Manganese (Mn)
• Iron (Fe)
• Silicon (Si)
• Copper (Cu)
• Other specified elements

Consistent chemical composition helps maintain stable mechanical properties, corrosion resistance, fabrication performance, and anodizing response.

10.2 Dimensional Inspection

Each production order can be inspected according to the required dimensions and tolerances.

10.3 Mechanical Property Testing

The temper directly affects the mechanical performance of 5005 aluminum.

Huawei can verify the required mechanical properties according to the applicable standard and agreed specification.

Typical tests include:

• Tensile strength
• Yield strength
• Elongation
• Hardness, where required

Test results can be documented in the Material Test Certificate when required.

10.4 Anodizing Quality Control

The anodizing process requires control of both surface appearance and performance.

For large architectural projects, Huawei can coordinate sample approval, color matching, surface inspection, and batch consistency.

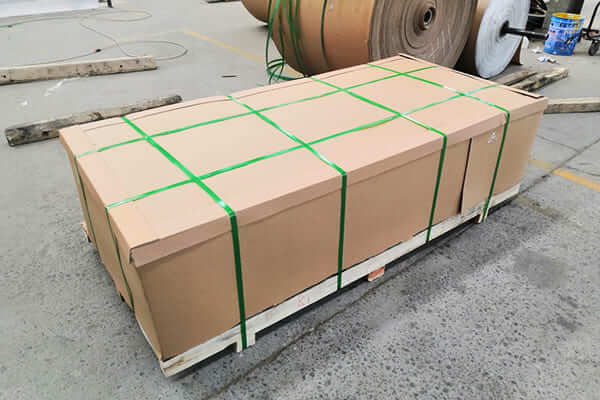

10.5 Packaging and Shipping Protection

Finished anodized sheet requires suitable protection during handling and transportation.

Typical measures include:

• Protective film when specified
• Interleaving paper where required
• Edge protection
• Wooden pallets or export packaging
• Moisture protection
• Secure container loading
• Product identification and shipping marks

Proper packaging helps reduce scratches, dents, moisture exposure, and handling damage during international transportation.

11. 5005 Anodized Aluminum Sheet Plate vs. Other Anodized Aluminum

Different aluminum alloys can be anodized, but their mechanical properties, surface appearance, formability, and typical applications vary.

The following tables provide a practical comparison for selecting anodized aluminum sheet.

11.1 5005 vs. Other Common Anodized Aluminum Alloys

Actual anodized appearance depends strongly on substrate quality, surface preparation, alloy chemistry, rolling condition, and anodizing parameters.

11.2 Anodizing Performance Comparison

12. Conclusion

5005 anodized aluminum sheet plate combines the inherent advantages of 5005 aluminum with the enhanced surface performance and appearance provided by anodizing.

Its main advantages include:

• Good anodizing response
• Attractive metallic appearance
• Good atmospheric corrosion resistance
• Good formability
• Moderate mechanical strength
• Lightweight construction
• Good fabrication performance
• Multiple surface and color options

For architectural and decorative applications, material selection should consider more than the alloy designation.

Alloy, temper, thickness, surface quality, anodizing process, anodic coating, color tolerance, and fabrication requirements should be considered together.

For appearance-critical projects, sample approval and strict control of the aluminum substrate can help maintain consistent anodized appearance between production batches.

FAQs

1. What is 5005 anodized aluminum sheet plate?

It is 5005 aluminum sheet treated with an anodizing process to improve surface durability, corrosion resistance, and appearance.

2. Why is 5005 suitable for anodizing?

5005 offers good anodizing response, corrosion resistance, formability, and a consistent decorative metallic appearance.

3. What anodized finishes are available?

Common options include clear, silver, champagne, bronze, dark bronze, and black, with brushed or satin surfaces also available.

4. What tempers are available for 5005 aluminum?

Common tempers include O, H12, H14, H16, H18, H32, H34, H36, and H38. The choice depends on strength and forming requirements.

5. Where is 5005 anodized aluminum sheet plate used?

It is commonly used for facades, wall cladding, ceiling panels, signage, interior decoration, furniture, and decorative trims.

6. Can 5005 anodized aluminum sheet be customized?

Yes. Thickness, width, length, temper, surface finish, anodizing color, coating requirements, and packaging can be customized.
